FEATHER SPLICING

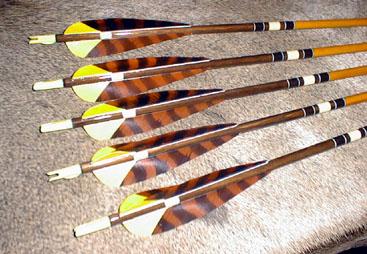

Feather splicing is the process in which feathers of different colors can be spliced together to create different effects. This process is also called feather mending. There are two basic reasons why a person may want to splice feathers together. The first is purely aesthetic. A feather splice can add a very distinctive touch to your arrow making and set your arrows apart from others. There is a practical side as well. You may like the idea of having bright feathers to be able to see your arrow in flight, but you may not want an entire quiver full of bright colored arrows that may draw unwanted attention. A practical solution is to splice a section of the bright color to the back of one or each of the otherwise drab colors. The above photo shows a set of arrows that I made for my son Jeff using brown artificial barred feathers with bright yellow spliced in the back of each feather. You get the best of both worlds, something bright to see yet not so obtrusive to alert your quarry. The following is the same splicing method that I described in the article in Traditional Bowhunter magazine in the June/July, 1996 edition.

A feather is essentially a series of interlocking barbs attached to a quill. This splicing method removes the barbs from the quill in the section to be spliced and replaces the removed barbs by gluing in a section from another feather. It is not very difficult and takes no special equipment other than a chopper or feather burner to trim your arrow into its final shape and a straight feather clamp. I will demonstrate by writing and photos a splice at the rear of a feather. You can use the same technique to make a splice in the middle of a feather. It just takes a little more time and attention.

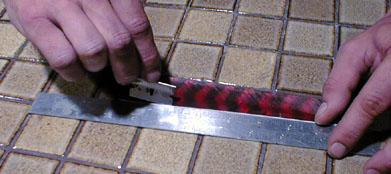

First take a very sharp single edge razor and cut the barbs from the quill in the section that you are splicing

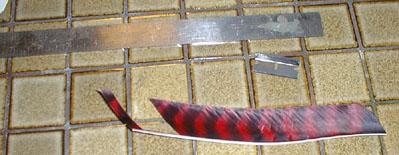

If your razor is even slightly dull you will not get a smooth cut. Leave a small piece at the very end as this will be used to strip the remaining barb stubble and will expose the quill which will then be used as a base to glue on the new piece of feather

When making this cut, I like to use a steel straight edge to steady the feather as I make the cut.

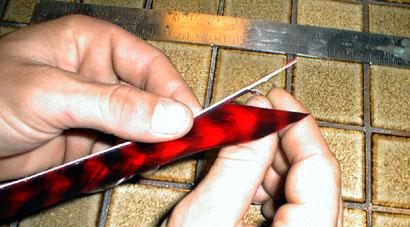

You can now peel off the remaining barb stubble which will expose only the quill

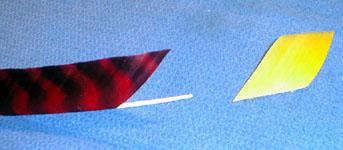

Be careful not to cut completely through the quill. The feather should look like the example in photo 5 which is ready for a new piece of feather to be glued in place.

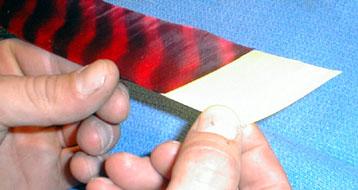

Next, cut a piece of feather from the other color that you are going to use. The splicing will be easier if you cut this new piece from about the same location on the feather as the piece that you removed. Before you glue the new piece in, you have to remove most of the quill by sanding it off. The easiest way that I have found to do this is to put the piece of feather into a straight feather clamp. You can use a commercially made clamp or you can make your own. All it has to do is to hold the piece of feather firmly in place as you sand away most of the quill. I use 150 grit sandpaper for this purpose. Sand the quill away until you are left with a just a thin membrane that is holding the barbs together. This new feather section may be slightly wider that what you are going to glue it to so trim it to the proper width using a pair of sharp scissors.

Put a moderate amount of Duco on the piece to be glued in shape and simply place it on the base of the prepared feather. With a little practice the two pieces will "mend" together quite nicely.

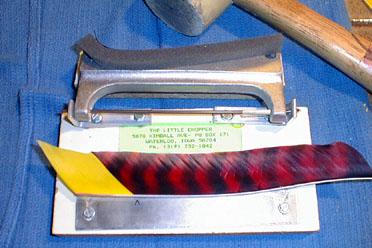

Let the feathers dry for 10 - 15 minutes before chopping. To get each of the feathers that you splice to be exactly the same, put a mark on your chopper at the point where the splice starts and line up your spliced feather on that mark. This will assure that all of the splices are exactly the same.

That is all there is to it, you now have a feather ready to go into the fletching jig. It may look like a lot of effort, but once you get the hand of it, it doesn't take much time. And besides, what else is there to do on a cold winter night after hunting season is over other than dream about next year.
